street-segment Component

The street-segment component creates and manages individual street segments in a 3D environment. Each segment represents a distinct part of the street (e.g., drive lanes, bike lanes, sidewalks) with specific properties and behaviors.

User Interface

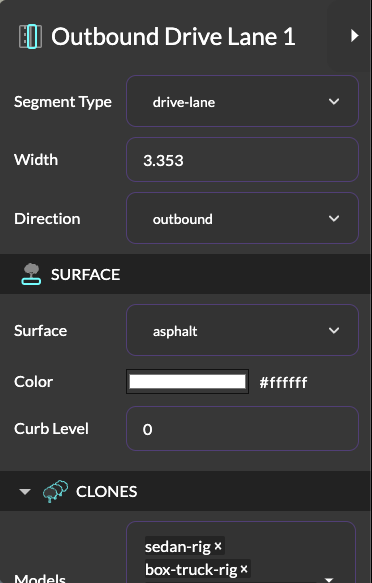

A custom sidebar in 3DStreet Editor allows users to edit a subset of street-segment properties and associated generated components.

Properties

Property	Type	Default	Description
type	string	-	Type of street segment. Must be one of: 'drive-lane', 'bus-lane', 'bike-lane', 'sidewalk', 'parking-lane', 'divider', 'grass', 'rail', 'boundary'
width	number	-	Width of the segment in meters
length	number	-	Length of the segment in meters
elevation	number	0	Vertical offset of the segment surface in meters (0 = road level, 0.15 = curb/sidewalk height). Minimum 0; negative elevations are unsupported. Shown as "Elevation (m)" in the editor sidebar. Replaces the deprecated integer level property (migrated at load time, 1 level == 0.15 m)
floors	int	0	Boundary building height in floors, carried over from the imported source (Streetmix boundary object). Metadata only for now; it does not yet drive generated building model height. 0 = unspecified
slope	boolean	false	Tilt the segment surface between two elevations across its width (Coastmix schema v34). When true, the surface interpolates from slopeStart to slopeEnd and elevation is ignored
slopeStart	number	0	Elevation in meters at the segment's start edge (local -x, toward the previous segment) when slope is on. Minimum 0
slopeEnd	number	0	Elevation in meters at the segment's end edge (local +x) when slope is on. Minimum 0
direction	string	'none'	Direction of traffic flow: 'none', 'inbound', or 'outbound'. Defaults to 'none' (no travel direction); generated content follows the segment direction only when set to 'inbound' or 'outbound'
surface	string	'asphalt'	Surface material type. One of: 'asphalt', 'concrete', 'grass', 'sidewalk', 'gravel', 'sand', 'cracked-asphalt', 'parking-lot', 'water', 'none', 'solid'
color	color	-	Color of the segment surface
variant	string	'custom'	Preset configuration for boundary segments ("Boundary Variant" in the editor sidebar). One of: 'brownstone', 'suburban', 'arcade', 'water', 'grass', 'parking', 'sp-mixeduse', 'sp-residential', 'sp-big-box', 'custom'
side	string	'right'	Which side of the street the boundary flanks ('left' or 'right'). Used with boundary segments

Segment Types

The component includes several predefined segment types with specific configurations. These are intended to be used as a starting point for creating custom segment types.

Drive Lane

{
  type: 'drive-lane',
  color: white,
  surface: 'asphalt',
  elevation: 0,
  generated: {
    clones: [{
      mode: 'random',
      modelsArray: 'sedan-rig, box-truck-rig, self-driving-waymo-car, suv-rig, motorbike',
      spacing: 7.3,
      count: 4
    }]
  }
}

Bus Lane

{
  type: 'bus-lane',
  surface: 'asphalt',
  color: red,
  elevation: 0,
  generated: {
    clones: [{ mode: 'random', modelsArray: 'bus', spacing: 15, count: 1 }],
    stencil: [{ modelsArray: 'word-only, word-taxi, word-bus', spacing: 40, padding: 10 }]
  }
}

Bike Lane

{
  type: 'bike-lane',
  color: green,
  surface: 'asphalt',
  elevation: 0,
  generated: {
    stencil: [{ modelsArray: 'bike-arrow', cycleOffset: 0.3, spacing: 20 }],
    clones: [{
      mode: 'random',
      modelsArray: 'cyclist-cargo, cyclist1, cyclist2, cyclist3, cyclist-dutch, cyclist-kid, ElectricScooter_1',
      spacing: 2.03,
      count: 4
    }]
  }
}

Boundary

The boundary segment type represents adjacent land use flanking the street: buildings, waterfront, fences, or parking lots. Building variants use the fit clone mode to place buildings continuously along the segment, aligned based on the side property.

Boundary segments never affect street layout: the travelled way (all non-boundary segments) is the only input to centering, ground, and labels. Boundaries render just outside the travelled way's edges by their side, regardless of their position in the scene graph.

note

This type was previously named building. The old value is deprecated but still accepted; it is renamed to boundary when loading older scenes and JSON blobs.

{
  type: 'boundary',
  surface: 'cracked-asphalt',
  elevation: 0.15,
  generated: {
    clones: [{
      mode: 'fit',
      spacing: 0
    }]
  }
}

Boundary Variants

The boundary segment supports multiple preset variants via the variant property ("Boundary Variant" in the editor sidebar). Each variant defines a specific collection of building models and surface type:

Variant	Buildings	Surface	Description
brownstone	Mixed 4-5 floor buildings	cracked-asphalt	Urban mixed-use buildings
suburban	Single-family houses	grass	Suburban residential homes
arcade	Arched buildings	sidewalk	Commercial arcade-style buildings
water	Seawall	water	Waterfront edge with animated water
grass	Fence	grass	Grass boundary with fencing
parking	Fence	parking-lot	Parking lot boundary with fencing
sp-mixeduse	StreetPlan mixed-use 2-3 floors	sidewalk	Mixed-use commercial/residential buildings
sp-residential	StreetPlan single-family & townhouses	grass	Residential buildings and townhomes
sp-big-box	Big box stores, parking structures, government buildings	parking-lot	Large commercial and civic buildings
custom	User-defined	-	Preserves custom modifications

Example with variant:

<a-entity street-segment="
  type: boundary;
  variant: brownstone;
  side: right;
  width: 10;
  length: 150">
</a-entity>

Fit Mode for Clones

Boundary segments use a special fit mode for the street-generated-clones component that intelligently places models based on their actual dimensions:

Properties:

• mode: 'fit' - Places models continuously along the segment
• spacing - Gap between models in meters (can be negative for overlapping)
• justifyWidth - Horizontal alignment: 'left', 'center', or 'right'

The component automatically:

• Uses building width and depth from a lookup table
• Calculates positions to fit models end-to-end
• Adjusts horizontal position based on justifyWidth and segment side
• Stops when remaining space is insufficient

Supported building dimensions are defined for all StreetPlan models, brownstone buildings, suburban houses, and arcade buildings. See the source code for the complete list.

Events

Event Name	Description	Event Detail
segment-width-changed	Fired when segment width is modified	{oldWidth, newWidth}

Generated Components

The component can automatically generate and manage several sub-components based on the segment type:

• Clones: Generates repeated 3D models (vehicles, cyclists, etc.)
• Stencils: Adds road markings and symbols
• Pedestrians: Adds pedestrian models with configurable density
• Striping: Adds road stripes and markings

Surface Types and Textures

The component supports various surface types with corresponding textures:

Surface Type	Texture ID	Description
asphalt	seamless-road	Standard road surface
concrete	seamless-bright-road	Bright concrete surface
grass	grass-texture	Grass surface
sidewalk	seamless-sidewalk	Sidewalk texture
gravel	compacted-gravel-texture	Gravel surface
sand	sandy-asphalt-texture	Sandy surface
cracked-asphalt	asphalt-texture	Weathered asphalt surface
parking-lot	parking-lot-texture	Parking lot surface
water	-	Animated water surface with normals
hatched	hatched-base	Hatched marking pattern
none	-	No visible surface
solid	-	Solid color surface

Usage

Basic usage example:

<a-entity street-segment="
  type: drive-lane;
  surface: asphalt;
  color: white;
  width: 3;
  length: 150">
</a-entity>

Component Lifecycle

The component manages several key operations during its lifecycle:

1. Initialization: Sets up default height and generated components list
2. Update: Handles property changes and updates meshes accordingly
3. Remove: Cleans up generated components and meshes

Methods

calculateHeight(elevation)

Converts a metric elevation to the segment surface box height (base surface depth + elevation, clamped so the surface never sits below road level).

generateMesh(data)

Creates the segment's 3D geometry and materials.

calculateTextureRepeat(length, width, textureSourceId)

Calculates texture repeat and offset values based on segment dimensions.

Notes

• The component automatically handles elevation changes based on the elevation property (meters)
• Texture repeats are calculated automatically based on segment dimensions
• Generated components (vehicles, pedestrians, etc.) are managed automatically based on segment type
• The component uses a custom 'below-box' geometry for proper ground alignment

Known Limitations

• Surface textures and other cloned models must already be present via asset loader, this component does not preload textures or models and assumes they are already available as mixins in the scene
• Negative elevations (below road level) are unsupported: elevation, slopeStart, and slopeEnd have a minimum of 0
• Slopes can be imported (Coastmix schema v34) and round-trip through save/load, but there is no editor UI for authoring them yet
